MCB'S CHANNEL TYPE

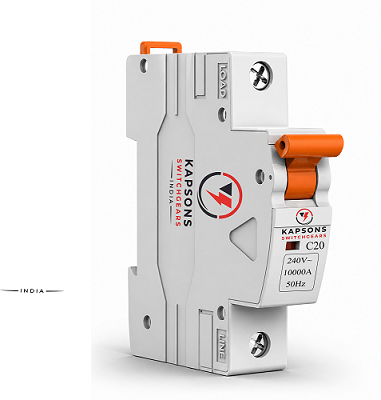

KSI-C3
Technical Specifications
| Pole | Single Pole |
|---|---|
| Current Rating | 0.5A,1A,2A,3A,6A,10A,16A,20A,25A,32A,40A,63A |
| Breaking Capacity | 10kA |
| Rated Voltage | 240V AC / 415V AC |
| Frequency | 50 Hz |
| Package | 12 Pcs/Box |
| Standard | IS/IEC 60898-1 |
MCB'S CHANNEL TYPE

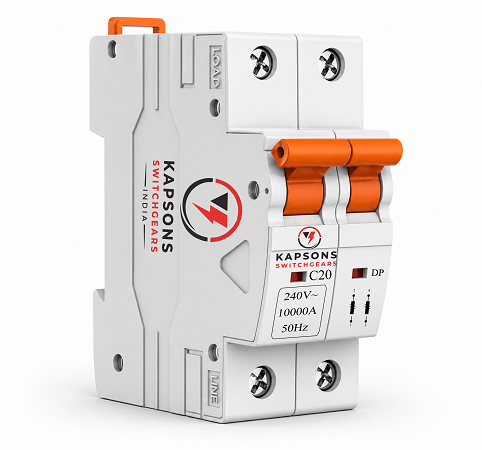

KSI-C9
Technical Specifications
| Pole | Double Pole |
|---|---|
| Current Rating | 0.5A,1A,2A,3A,6A,10A,16A,20A,25A,32A,40A,63A |
| Breaking Capacity | 10kA |
| Rated Voltage | 240V AC / 415V AC |
| Frequency | 50 Hz |
| Package | 6 Pcs/Box |
| Standard | IS/IEC 60898-1 |
MCB'S CHANNEL TYPE

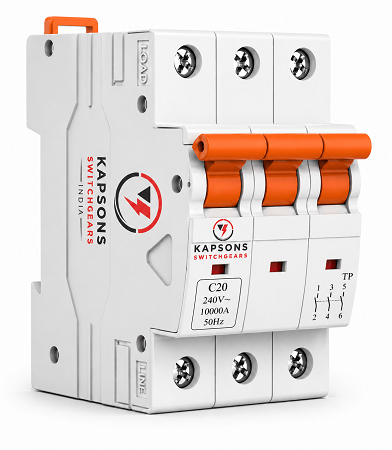

KSI-C15
Technical Specifications
| Pole | Three Pole |
|---|---|
| Current Rating | 0.5A,1A,2A,3A,6A,10A,16A,20A,25A,32A,40A,63A |
| Breaking Capacity | 10kA |
| Rated Voltage | 240V AC / 415V AC |
| Frequency | 50 Hz |
| Package | 4 Pcs/Box |
| Standard | IS/IEC 60898-1 |
MCB'S CHANNEL TYPE

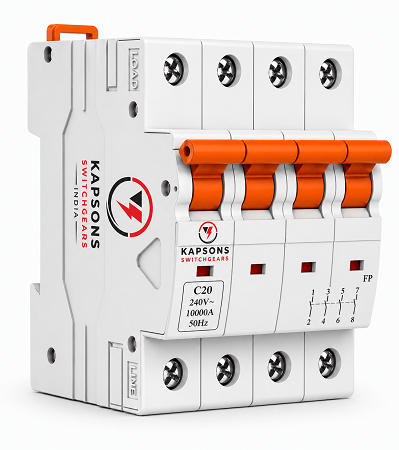

KSI-C21
Technical Specifications
| Pole | Four Pole |
|---|---|
| Current Rating | 0.5A,1A,2A,3A,6A,10A,16A,20A,25A,32A,40A,63A |
| Breaking Capacity | 10kA |
| Rated Voltage | 240V AC / 415V AC |
| Frequency | 50 Hz |
| Package | 3 Pcs/Box |
| Standard | IS/IEC 60898-1 |
MCB'S CHANNEL TYPE

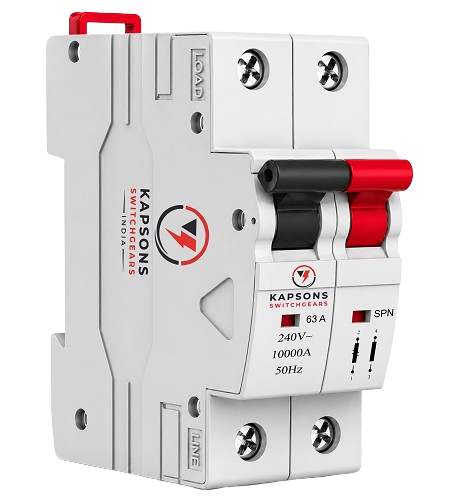

KSI-C27
Technical Specifications
| Pole | Single Pole Neutral |
|---|---|
| Current Rating | 0.5A,1A,2A,3A,6A,10A,16A,20A,25A,32A,40A,63A |
| Breaking Capacity | 10kA |
| Rated Voltage | 240V AC / 415V AC |
| Frequency | 50 Hz |
| Package | 6 Pcs/Box |
| Standard | IS/IEC 60898-1 |
MCB'S CHANNEL TYPE

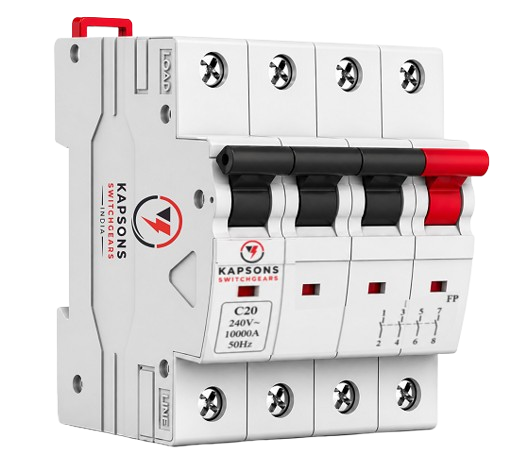

KSI-C33
Technical Specifications
| Pole | Three Pole Neutral |
|---|---|
| Current Rating | 0.5A,1A,2A,3A,6A,10A,16A,20A,25A,32A,40A,63A |
| Breaking Capacity | 10kA |
| Rated Voltage | 240V AC / 415V AC |
| Frequency | 50 Hz |
| Package | 3 Pcs/Box |
| Standard | IS/IEC 60898-1 |
