RESIDUAL CURRENT CIRCUIT BREAKER

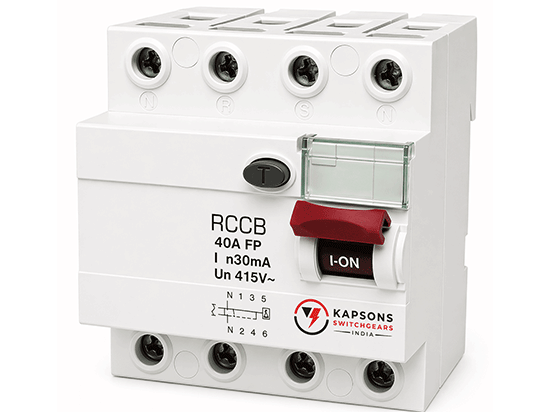

RCCB FP
Technical Specifications
| Parameter | Specification |
|---|---|
| Tripping Type | AC Type (typical) |
| Standard | IS/IEC 61008-1 |
| Breaking Capacity | As per standard |
| Rated Voltage (Ue) | 240/415 V AC |
| Mechanical Life | = 10,000 Operations |
| Frequency | 50 Hz |
| Electrical Life | = 5,000 Operations |
| Rated Current (In) | 25A,32A,40A,63A |
| Mounting | DIN Rail/ Panel Mount |
| Sensitivity (IAn) | 30mA/100mA/300mA |
| Number of Poles | Four Pole |
